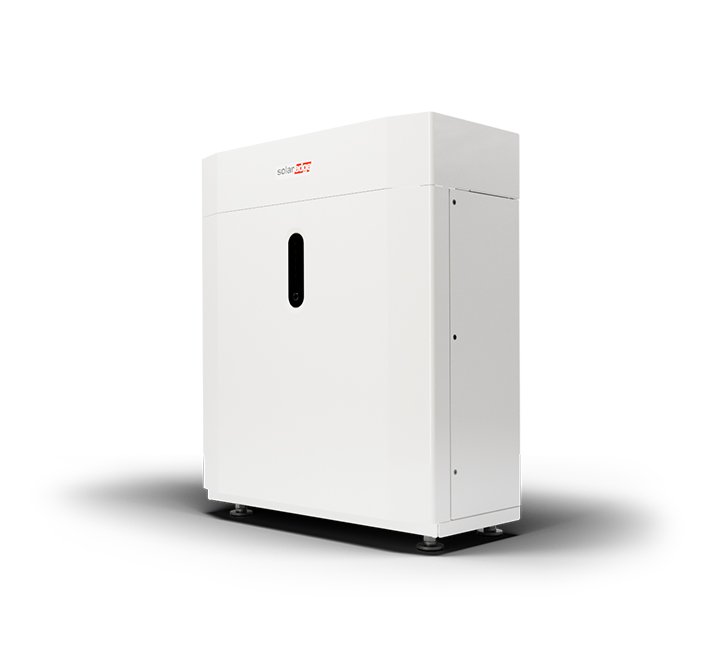

The SolarEdge Home Battery 48V is a modular, high-efficiency energy storage solution designed to maximize solar self-consumption and deliver reliable backup power. With its superior round-trip efficiency and stackable design, it seamlessly integrates into the SolarEdge ecosystem to provide homeowners with enhanced energy independence, safety, and future-ready flexibility.
The SolarEdge Home Battery 48V allows homeowners to store excess solar energy generated during the day and use it during the evening or during power outages. Thanks to DC coupling, energy is stored directly with no unnecessary conversions, resulting in an industry-leading round-trip efficiency of up to 95.4%.
Designed to grow with your needs, this battery supports stacking up to five modules per inverter, enabling up to 23 kWh of storage capacity. Whether you’re starting small or planning a larger system for higher self-consumption and backup needs, the modular approach offers unmatched flexibility.
Engineered for optimal compatibility with SolarEdge Home Hub and StorEdge Three Phase inverters, this battery integrates easily into a full SolarEdge system that includes smart modules, EV chargers, and backup interfaces. Unified monitoring and control through the mySolarEdge app and Monitoring Platform make system management effortless.
Safety is a top priority, with certifications including UL9540A, IEC 62619, and more. The battery can be installed indoors or outdoors, wall-mounted or floor-standing, providing maximum flexibility to suit different home layouts and aesthetic preferences.
Homeowners can enjoy complete visibility and control through the mySolarEdge app, featuring real-time data, automatic alerts, and detailed performance tracking. Free lifetime monitoring adds extra value and peace of mind.
Ideal for homeowners looking to maximize their solar investment, reduce grid reliance, and ensure backup power capability for critical appliances. Perfect for those wanting a future-ready, expandable battery solution seamlessly integrated into a single-vendor SolarEdge ecosystem.
| Specification | Details |
|---|---|
| Round-trip Efficiency | Up to 95.4% |
| Usable Energy (per module) | 4.6 – 4.85 kWh |
| Max Storage Capacity | Up to 23 kWh (5 modules) |
| Continuous Power (Single Module) | 2.8 – 4.1 kW |
| Continuous Power (Multiple Modules) | 5 kW |
| Voltage Range | 44.8 – 56.5 Vdc |
| Installation Type | Floor stand or wall-mounted, indoor/outdoor |
| Protection Rating | IP65 / NEMA 3R |
| Weight (per module) | 54.7 kg |
| Dimensions (W x H x D) | 540 x 500 x 240 mm |
| Operating Temperature | -10 to +50 °C |
| Communication | RS485 (between modules), CAN bus (to inverter) |
| Warranty | 10 years |
| Compliance | UL9540A, IEC 62619, UN38.3, VDE-AR-E 2510-50 |
